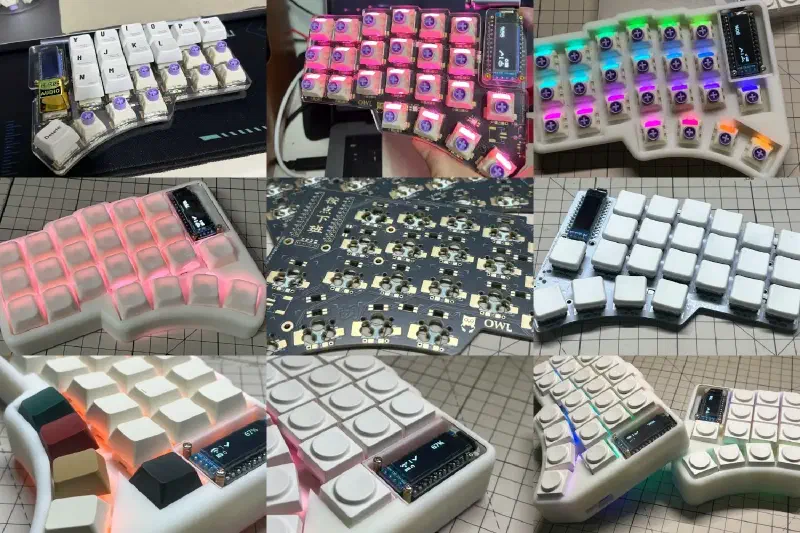

Owl (Orthogonal Wireless Layout)
Combines the ergonomic freedom of wireless connectivity with a split keyboard
Design influenced by Lily58, Corne, Sofle and Torn keyboards
Feature#
- Owl uses Pro Micro Interconnect small controller board, which means easy for Maintenance and replacemen. And supports a variety of boards including nice!nano and nrfmicro (I have not tried yet, but theoretically feasible).
- Low latency wireless, supported by ZMK.
- Gorgeous RGB lighting effects.

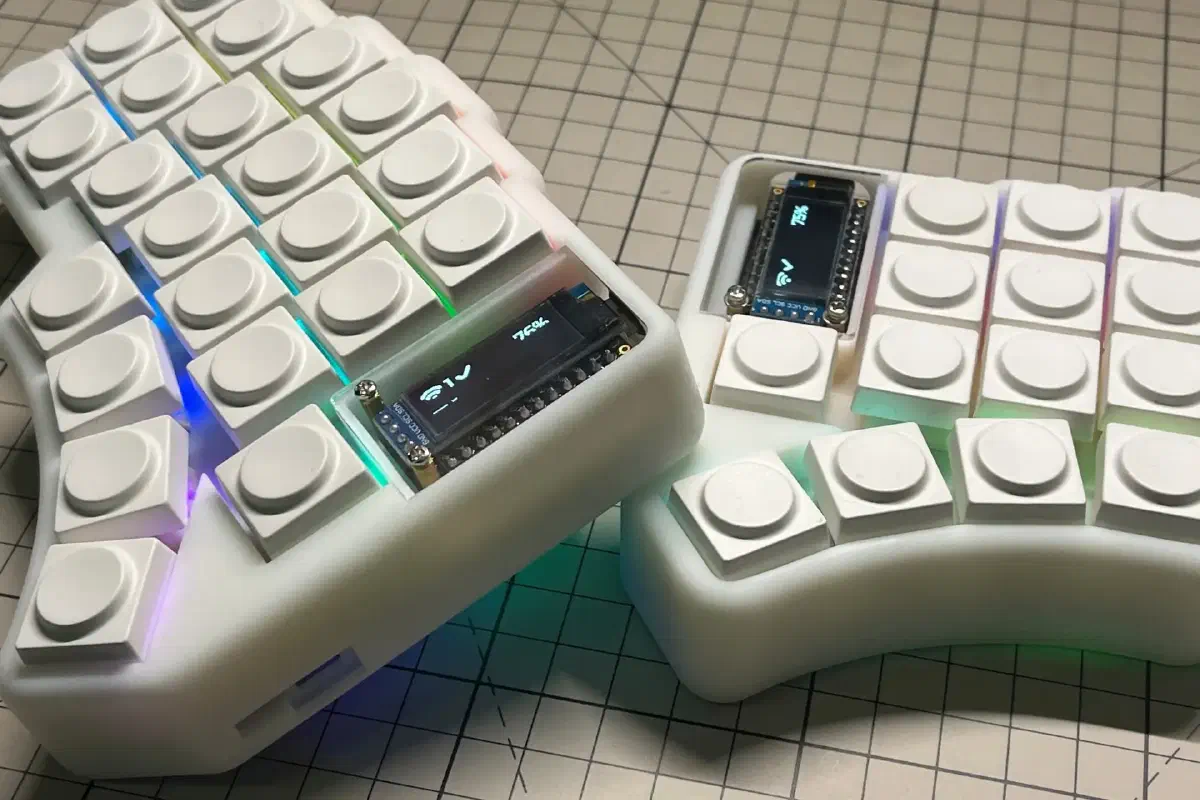

- Two multifunctional OLED screens that can display keyboard battery level and connection status.
- Split keyboard conforms to ergonomics.

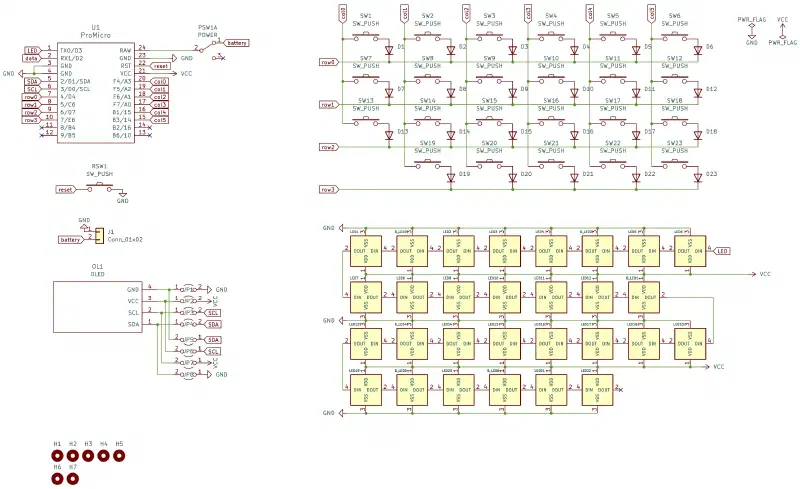

- A total of two PCBs compatible with Cherry MX switches, Kailh choc Low Profile switches, and Gateron Low Profile switches.
- Double-sided PCB design, both sides are universal.
DIY#
Please make sure you can get the ability to build the keyboard:
- Soldering circuit components
- Circuit board production
- 3D printing
- Using GitHub action to build firmware
- Consulting documents carefully
Continue reading the Owl Split Keyboard series to make a keyboard
License#
The Owl Keyboard is licensed under Creative Commons Attribution-NonCommercial 4.0 International License.
This PCB design may be freely reproduced, modified, and manufactured for personal use only. If you would like to use this design commercially please contact me at hza2002@foxmail.com to request permission.
